At Allame, we have a selection of cable jetting machine service which installs fiber optic cabling quickly across different applications. On this page you will be able to view all of our models and easily find the perfect machine.
Whether it be small machines that process micro cables or large machines designed for the toughest conditions in the field, we have one for you. Choose from electric, battery, or air-driven motor models as the perfect fit based on cable diameter, duct size, and job-distance needs.
Every presented machine is characterized by the technical expertise and field experience made by Skyfibertech. Whether your FTTH rollout or long distance infrastructure projects, our machines are designed to help you work faster and more productively.
Click on any model for complete technical specifications, accessories and application video.
Should you have any questions or require assistance selecting the best solution for your needs, please contact our dedicated and responsive team of experts.
Fiber Optic Cable Machines General Features

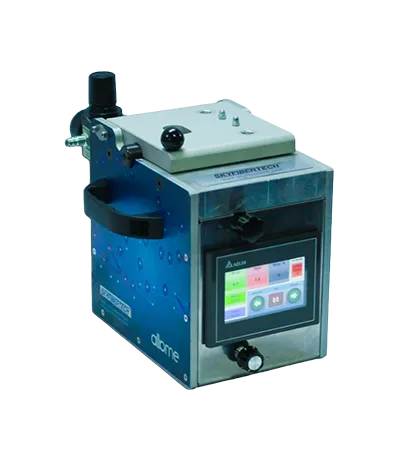

| Model |  MicroSKY |

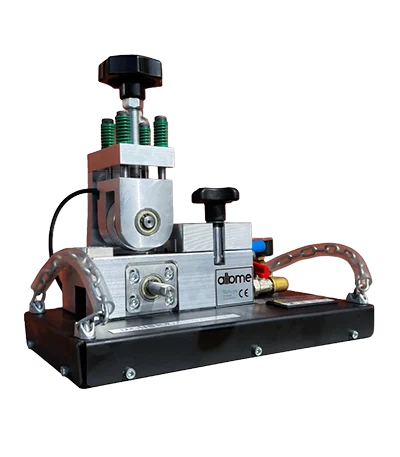

 DrillSKY |

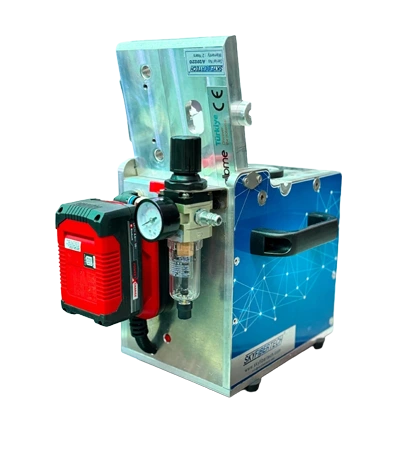

 DynoSKY |

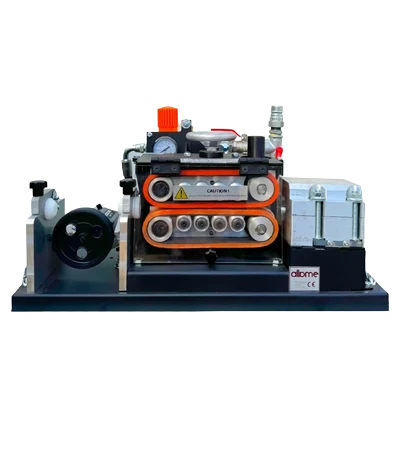

 MiniSKY |

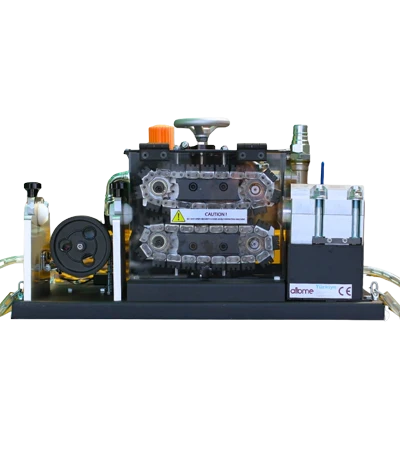

 SkyJET |

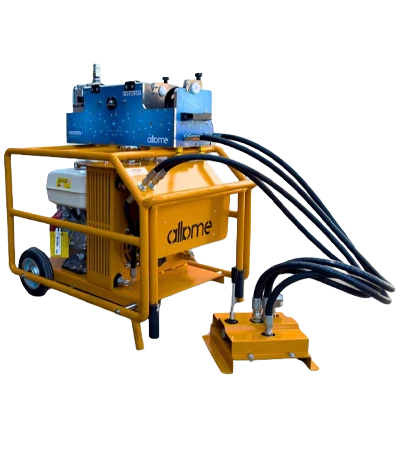

 HydroSKY |
|---|---|---|---|---|---|---|
| Cable Diameter (mm) | 1 – 6 | 1 – 6 | 1 – 3 | 2.5 – 16 | 6 – 24 | 6 – 24 |
| Tube Diameter (mm) | 3 – 16 | 3 – 16 | 3 – 16 | 7 – 63 | 12 – 63 | 12 – 63 |
| Air Pressure (Bar) | 12 | 12 | 12 | 12 | 12 | 12 |
| Air Flow Rate (m³) | 1 – 2 | 1 – 2 | 1 – 2 | 2 – 3+ | 2 – 3+ 10.5 m³ for 40mm pipe |
2 – 3+ 10.5 m³ for 40mm pipe |
| Driver | Servo Motor | Drilling Machine | Battery Motor | Pneumatic Motor 1 pcs | Pneumatic Motor 2 pcs | Hydraulic Motor 2 pcs |
| Pusher | Rubber/Alu Wheels | Rubber/Alu Wheels | Rubber/Alu Wheels | Rubber Belt | Rubber Chain | Rubber Chain |
| Dimensions (mm) | 150×200×250 | 150×200×250 | 150×200×250 | 200×350×300 | 200×350×300 | 600×700×900 |
| Weight (kg) | 12 | 7 | 9 | 35 | 40 | 160 |
| Pusher Sets (mm) | 1-3 4-6 |
1-3 4-6 |
3-7 | 2.5-4 5-8 9-13 14-16 |
6-8 9-13 14-18 19-24 |
6-8 9-13 14-18 19-24 |
