HydroSky Cable Jetting Machine

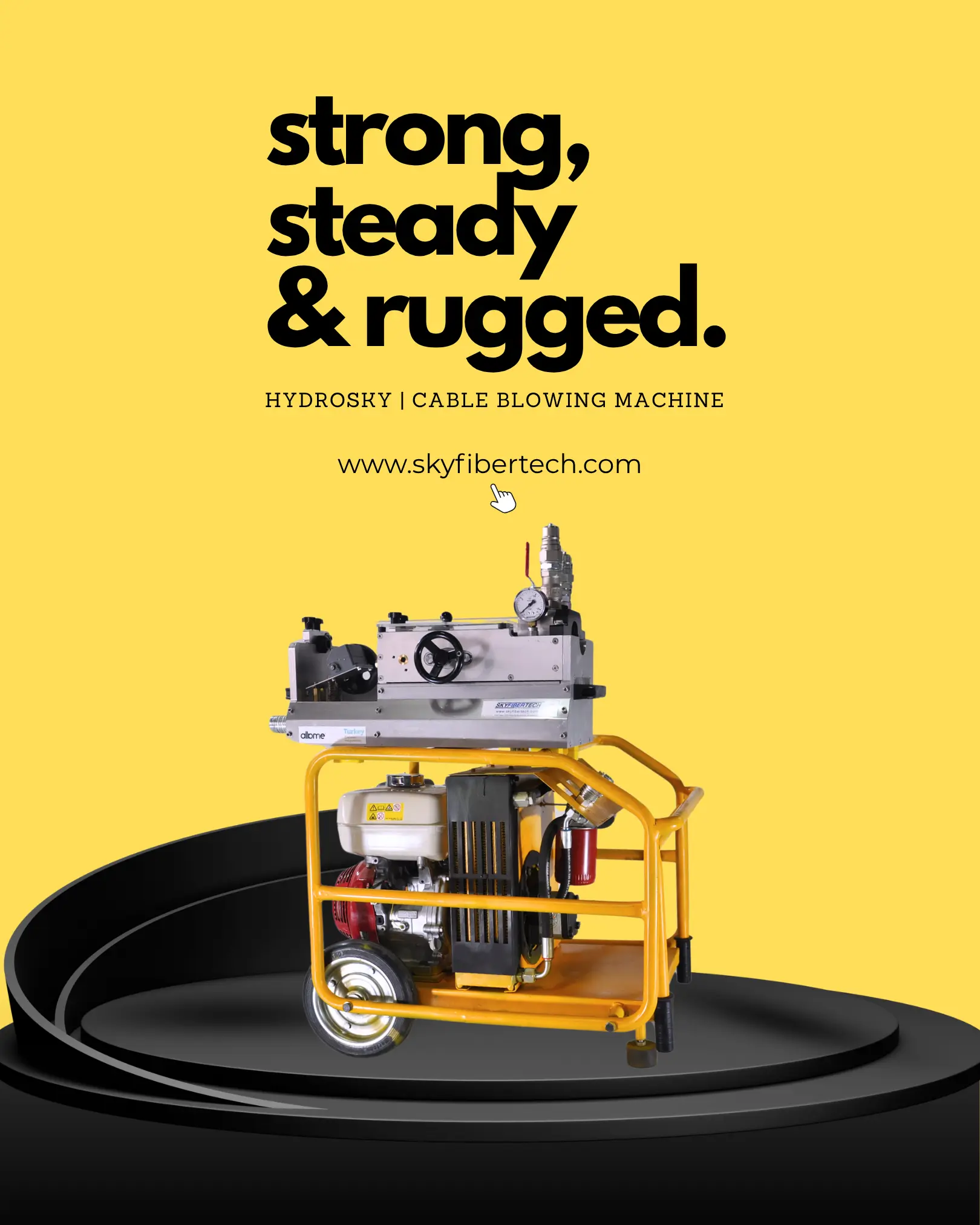

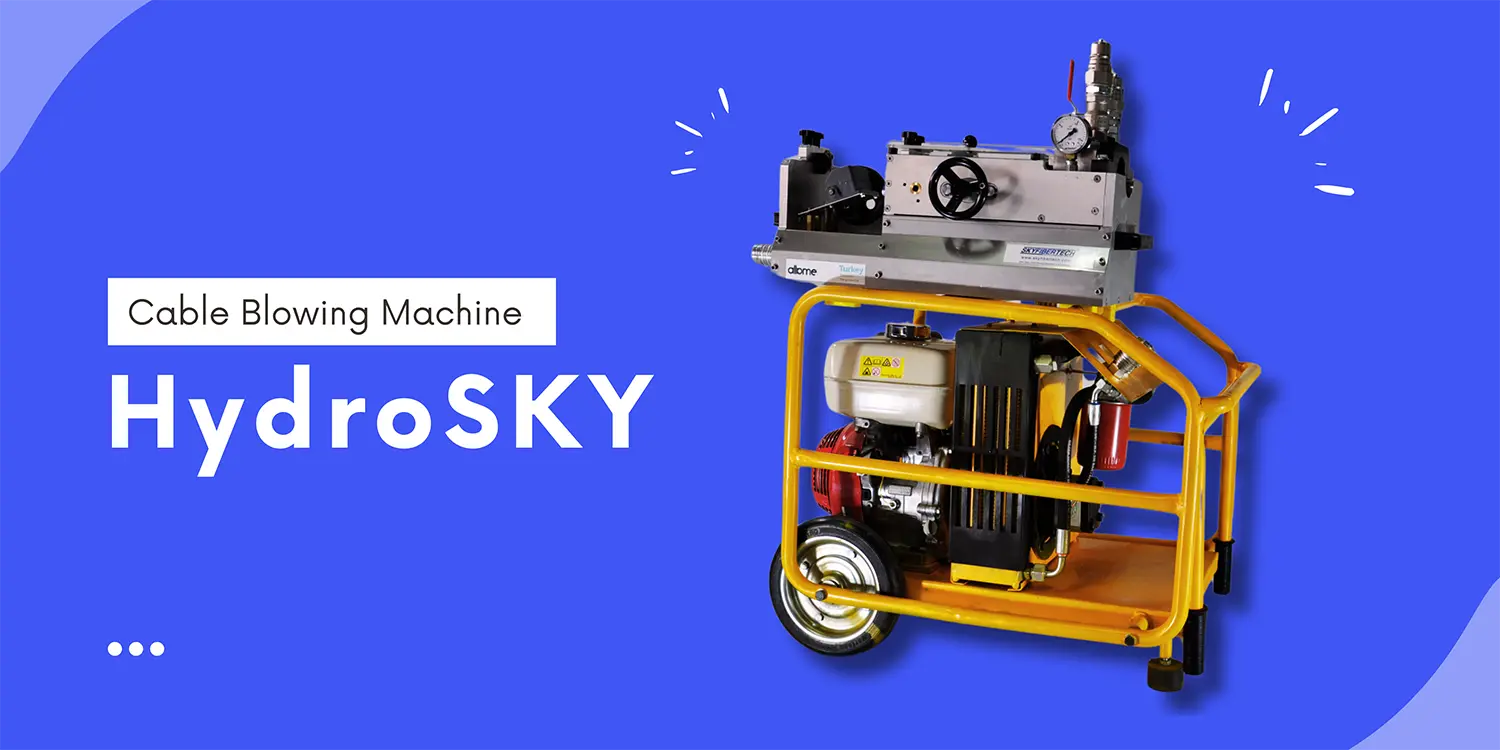

Fiber Optic Cable Jetting Machine HydroSKY is a high-performance fiber optic cable jetting system powered by a built-in hydraulic power unit. Engineered to handle challenging field conditions, this machine can insert fiber cables ranging from 6 mm to 24 mm into HDPE ducts with maximum stability and power.

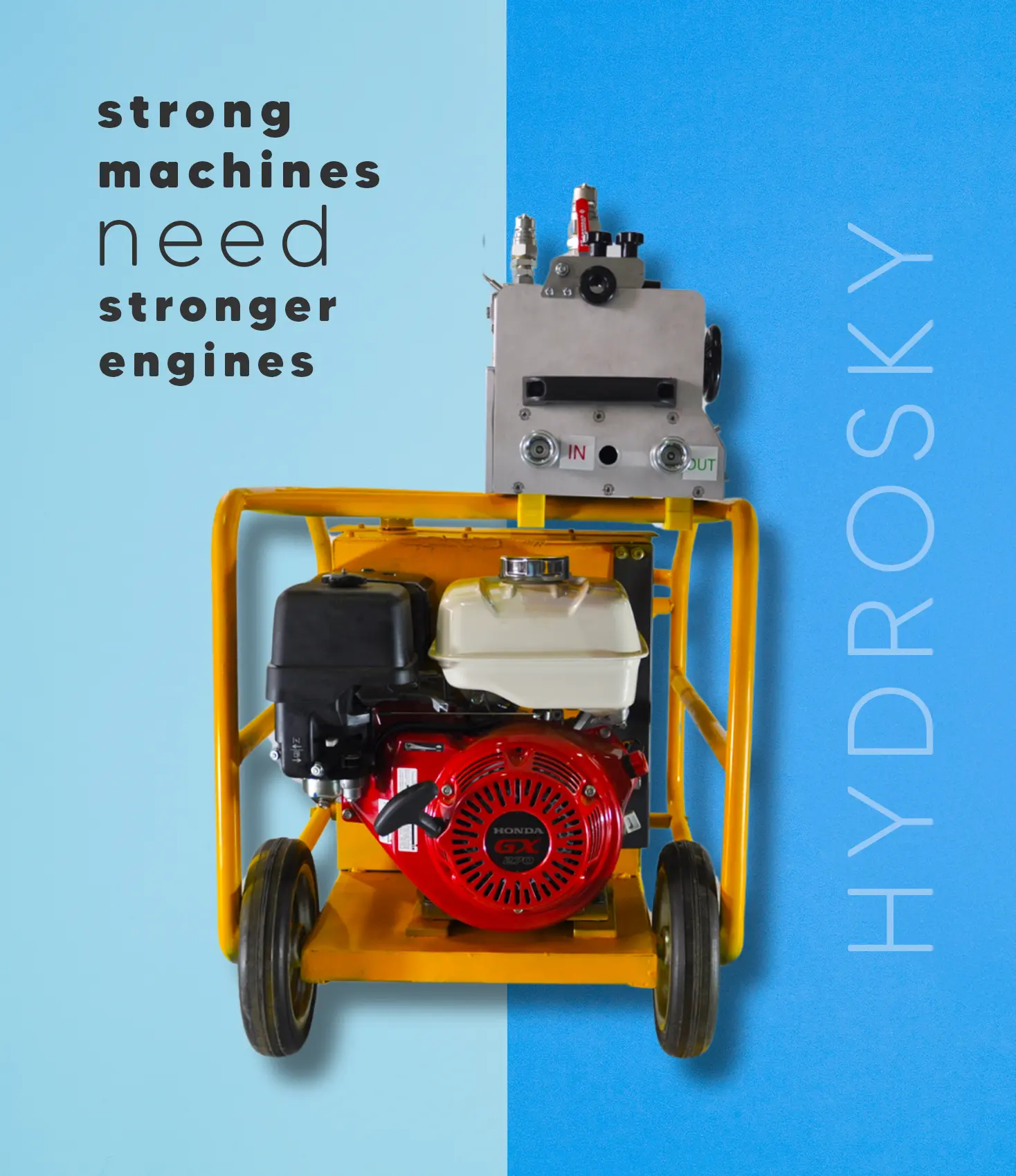

At its core is a 9 HP Honda GX270 gasoline engine, delivering consistent hydraulic pressure through an integrated cooling and filtration system designed for long hours of uninterrupted use in infrastructure deployments.
Built for Power and Endurance
With the ability to produce 8 L/min of hydraulic flow and has a maximum of 20L of total oil capacity, the HyrdoSKY delivers when extra flow is needed for long cable-blowing. The removable control box can be easily moved to the best location within your tractor. All features are integrated in this “Cruise to the field!” System.
No matter whether you lay cables in airports, petrochemical areas, telecom infrastructure, or civil works, outdoor works, HydroSKY is with you: it is the professional solution for long-range fiber optic installations.
Great Thrust Speed, even more than 180 Metres Per Minute
You can push armored or standard fiber optic cable in this machine at speed up to 180 meters per minute (depending on cable type and diameter). It accommodates easily with air compressors to perform as air hydraulic.
Recommended air supply:
12 bar pressure
10 m³/min airflow
(Example: 40mm HDPE pipe)
Optional water injection can be added for less friction and further blowing distance when necessary.
Cable Jetting Powered by Hydraulic
And because only two hydraulic lines need to be connected to the power unit, Fiber Optic Cable Jetting Machine HydroSKY is up and running in no time. Easy transport and handling even on remote job sites thanks to the compact, ergonomic design.
A built in meter counter does the counting for you so you can keep track of your cable length during long distance install jobs. Under optimum conditions, the system is capable of being used for cable blowing up to a distance of 6000 meters (Performance is a function of duct length, cable type and bends).

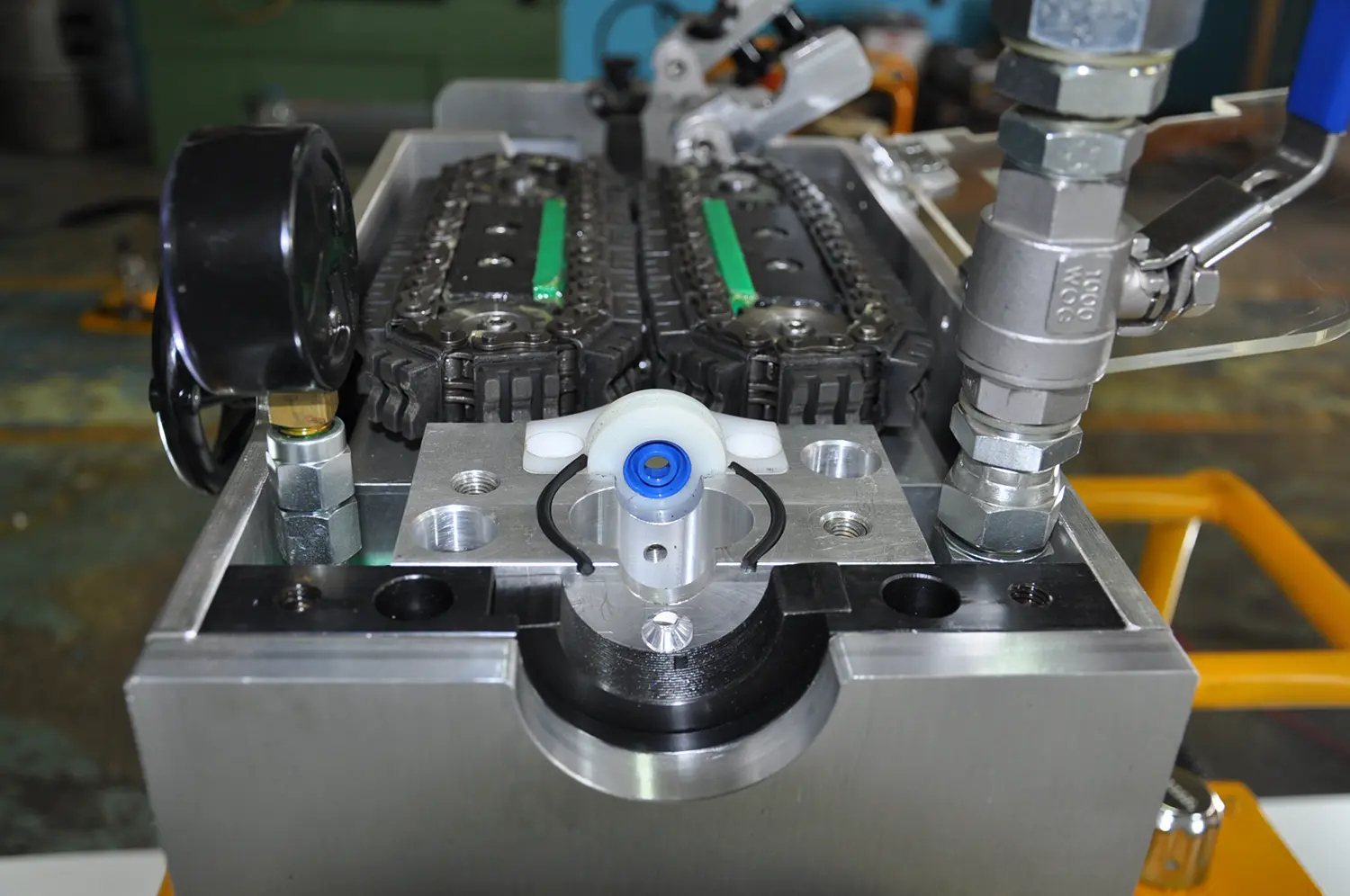

Swappable Chain Sets
HydroSKY is suitable for different fiber cable diameters and for all type of chain drive belt systems.
Available chain set ranges:
• 4mm – 7mm
• 8mm – 13mm
• 14mm – 18mm
• 19mm – 24mm
Special HDPE duct adapters can also be produced for your projects.
Technicial Specifications
| Pushing Force: | 0 – 200 kg |
| Pushing Speed: | 0 – 180 m/min |
| Cable Size : | 6 – 24 mm OD |
| Hdpe Pipe Diameter: | 20 – 63 mm O.D PLB |
| Hydraulic Drive System :: | 100 Bar (Max) |
| Using Features : | |
| Honda Motor : Gx270 | 9 HP Gasoline |
| Hydraulic Oil Capacity: (Filled by the user) | 25 Liter |
| Connection System : | |
| Heavy Duty Hydraulic Hose (min): 25mm (1”): | Compressor connection hose is not provided with the machine. |
| Operating pressure : | 12 Bar |
| Air consumption to minimum recommended pipe diameter (at 12Bar) : | |
| 0 – 25mm : | 4m³/min 150 CFM |
| 26mm – 30mm : | 5m³/min 185 CFM |
| 31mm – 35mm : | 7m³/min 250 CFM |
| 36mm – 40mm : | 10m³/min 375 CFM |
| 41mm – 44mm > : | 12m³/min 450 CFM |
Key Features at a Glance
• Long range with high performance cable blowing
• Quick-change chain system
Remote control, for easy use
• Compacted hydraulic power pack (Honda GX270, 8 l/min)
• Belts may be replaced with those having other cable diameters
• Precision surface driven feed system
• Press belt automatic and semi automatic device
• Pipe pressure gauge
• Fast connection couplings
• Replaceable duct inlets (custom sizes available)
• retval=rejects Safety cover for operator safety
• Waterproof, marine grade equipment case
• 2-year product warranty
