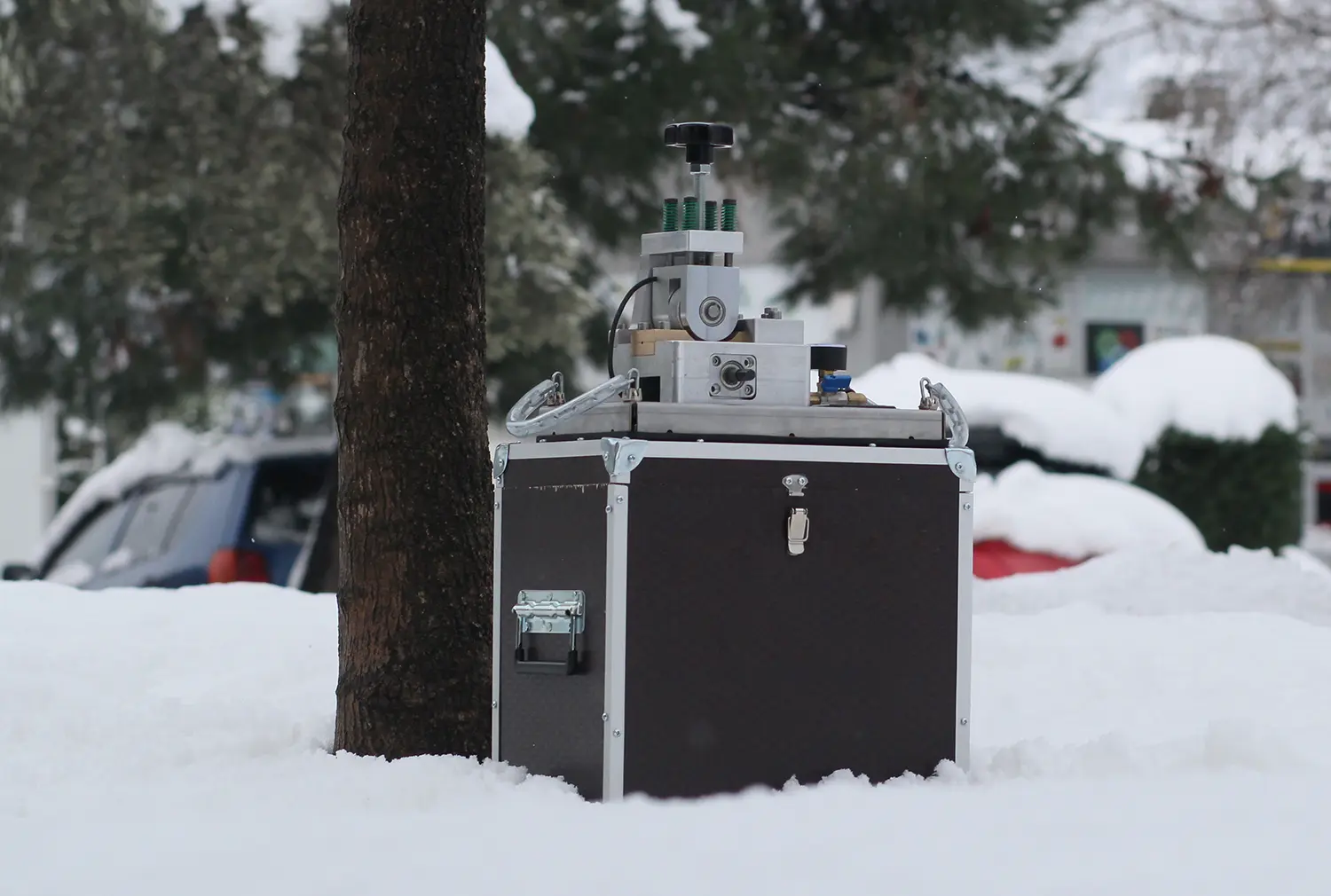

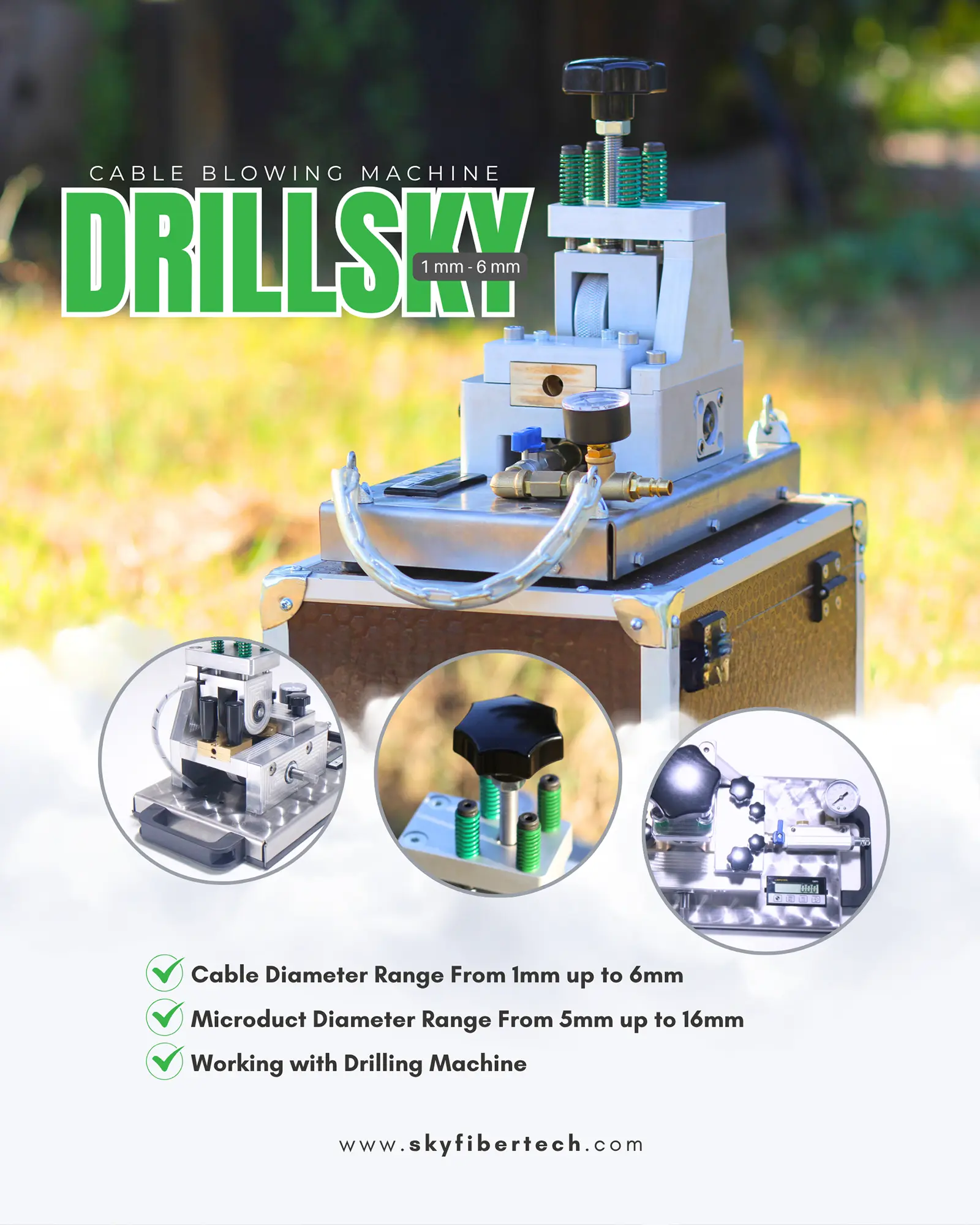

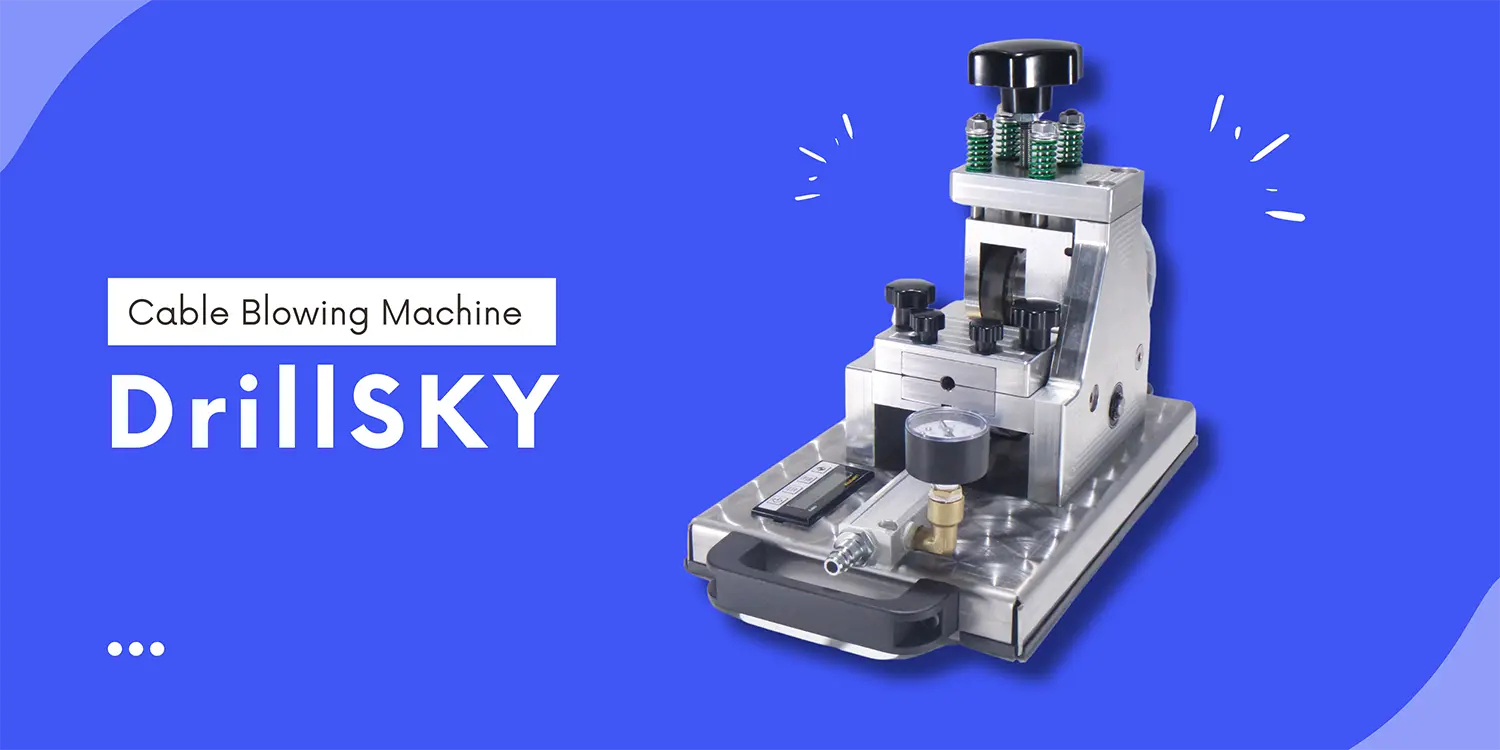

DrillSKY | Fiber Cable Blowing Machine (Drill-Operated)
Compact design, powerful performance. A smarter way to install micro fiber optic cables.
DrillSKY is a specialized cable blowing machine designed for pushing micro fiber optic cables into HDPE ducts with the help of a cordless or electric drill. Perfect for tight-space operations such as FTTH (Fiber to the Home) installations and indoor projects, this unit supports fiber cable diameters ranging from 1 mm to 6 mm.
Lightweight and easy to transport, DrillSKY is ideal for quick deployments. Thanks to its drill-powered operation and built-in digital meter counter, it provides an efficient and user-friendly experience that a single technician can manage without assistance.
Convert Drill Power into Cable Pushing Force
Unlike traditional motor-driven systems, Fiber Optic Cable Jetting Machine DrillSKY uses an external drill as its driving source. This gives you portability and eliminates dependency on fixed power sources. While the drill provides the mechanical push, a separate air compressor is used to reduce friction within the duct. The recommended air supply is 7 bar with 1–2 m³/min airflow (approximately 50–70 CFM), depending on the duct diameter.
Real-Time Cable Measurement
Fiber Optic Cable Jetting Machine DrillSKY comes equipped with a digital meter counter that shows the exact cable length inserted into the duct. You no longer need an extra measurement tool during operation—saving you time and boosting efficiency on site.
Delivered Ready for Action
Each DrillSKY unit is shipped pre-assembled and ready to use. The only information we need from you is the cable and duct size; the rest is handled at our facility. Everything is set for plug-and-play use right out of the box.
Technical Features & Benefits
• Powered by any standard drill (corded or cordless).
• Compatible with fiber cables from 1 mm to 6 mm.
• Adjustable to fit various HDPE duct diameters.
• Forward and reverse operation.
• Durable steel body for long-lasting use.
• Digital meter counter included.
• Hydraulic sealing adapts to cable size.
• Simple setup—can be operated by one person.
• Comes with all essential spare parts.
• 2-year service warranty and 10-year spare parts warranty.
• Supplied in a waterproof marine-grade storage box.
• Remote support available through our technical assistance line.
Standard Package Includes
• Cable feeding beds for all sizes (inlet and outlet)
• Duct adapter set (customized to your duct dimensions)
• Drill connector adapter
• O-ring set for sealing
• 1 mm–3 mm cable bed (inlet & outlet)
• 4 mm–6 mm cable bed (inlet & outlet)
• Allen wrench set
• Compressor hose coupler
• Accessory and spare parts box
Video for DrillSKY
DrillSKY Technical Specifications
