Fiber Optic Cable Jetting Machine SkyJET

SkyJET Cable Jetting Machine

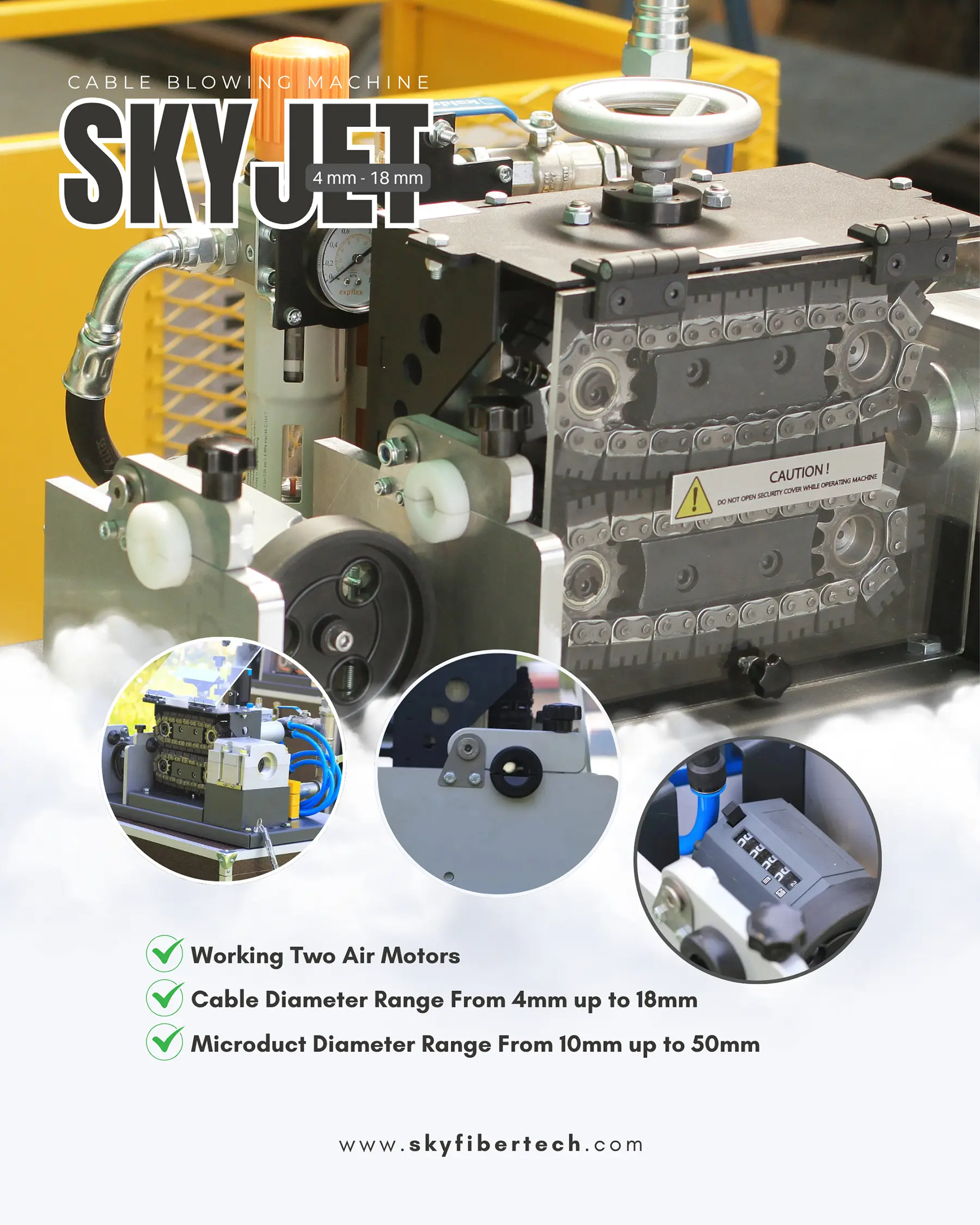

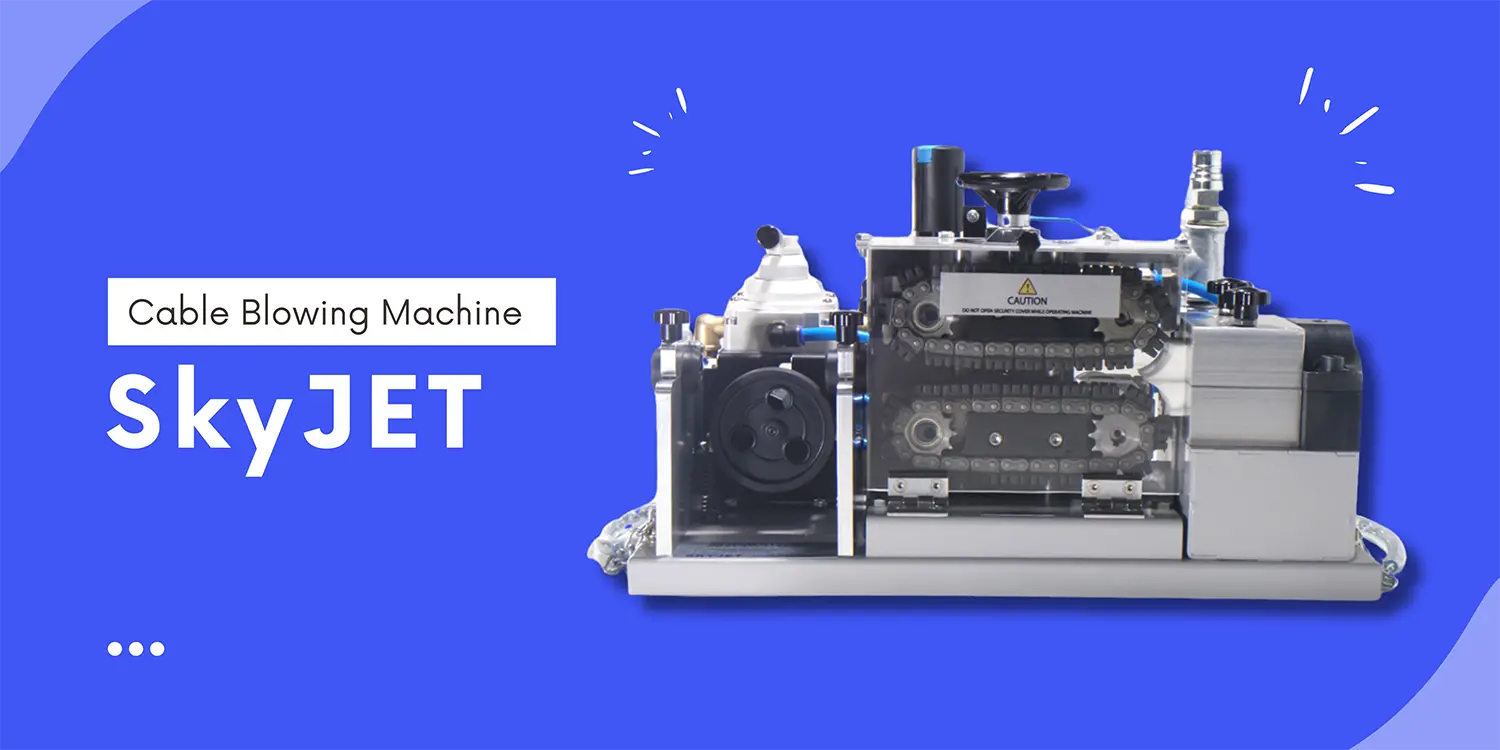

The SkyJET is a robust cable blowing system built to insert fiber optic cables into HDPE ducts using high-pressure compressed air. At its core are two high-efficiency pneumatic motors that generate strong, stable propulsion—powered only by an air compressor. No electrical supply needed, no complicated setup.

This makes SkyJET ideal for long-distance fiber optic deployments, where high performance and uninterrupted power are crucial.

Only Air. Pure Efficiency

The Fiber Optic Cable Jetting Machine SkyJET machine operates solely on compressed air. Thanks to its dual pneumatic motor system, you just need a reliable air compressor—no extra power units, no electronics, just plug in the air, and you’re good to go.

For optimal performance, especially when working with 40mm HDPE ducts, we recommend an air supply of at least 12 bar pressure and 10 m³/min flow. Larger ducts or longer cable runs may require higher flow rates. If you’re unsure, our team can help you select the right compressor setup.

Built for 40mm Ducts – Adaptable to Others

Fiber Optic Cable Jetting Machine SkyJET is designed primarily for 40mm HDPE pipe, but it’s also configurable for other sizes. If you’re working with larger or smaller diameter ducts, we provide tailored adapter kits to match your project’s exact requirements. Just let us know the pipe size during your order process, and we’ll prepare the right fittings.

Hassle-Free Setup and Use

SkyJET is built for quick deployment in the field. All necessary attachments, including compressor fittings and adapters, come with the machine. Setup takes only a few minutes. Simply connect the compressor adapter to the unit using the included connection gear and begin installation. Everything is included—no hidden accessories, no additional purchases.

Compatible Cable & Pipe Sizes

SkyJET supports a wide variety of fiber cable and HDPE pipe diameters. This flexibility ensures you can handle almost any cable blowing project with a single machine.

✔️ Supported HDPE Pipe Sizes:
• 12mm, 14mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm

✔️ Chain Sets by Cable Diameter:
• 6mm–8mm Chain Set
• 9mm–13mm Chain Set
• 14mm–18mm Chain Set
• 19mm–24mm Chain Set

(Each cable diameter comes with the appropriate pads and nutrings, all included in the kit.)

SkyJET Key Features at a Glance

• Dual pneumatic cable pushers for stable propulsion
• Weather-resistant mechanical meter for accurate length tracking
• Forward and reverse cable feeding function
• Plug-and-play compressor connection kit included
• Compatible pads and seals for fiber sizes between 8mm and 20mm
• HDPE duct adapters for pipes from 14mm up to 63mm
• Multiple special chain sets for various cable ranges
• Semi-automatic cable axer adaptable to multiple diameters
• Built from high-grade components for long-lasting durability
• 2-year full warranty and 10-year spare parts guarantee

Technicial Specifications

Pushing Force:	0 – 300 N
Pushing Speed:	0 – 150 m/dak
Cable Size :	6 – 24 mm
HDPE Pipe Diameter :	14 – 63 mm
MotorDrive :	Air (Double Air Motor)
Air consumption to minimum recommended pipe diameter (at 12Bar):
0 – 25mm :	4m³/min 150 CFM
26mm – 30mm :	5m³/min 185 CFM
31mm – 35mm :	7m³/min 250 CFM
36mm – 40mm :	10m³/min 375 CFM
41mm – 44mm > :	12m³/min 450 CFM

What’s in the Box?

When you order SkyJET, you receive a complete installation package:
• Chain sets for selected cable sizes
• Pipe adapters matching your project specs
• Compressor couplings and fittings
• Nutrings, pads, and seals for safe blowing
• Allen keys and setup tools
• Heavy-duty transport case
