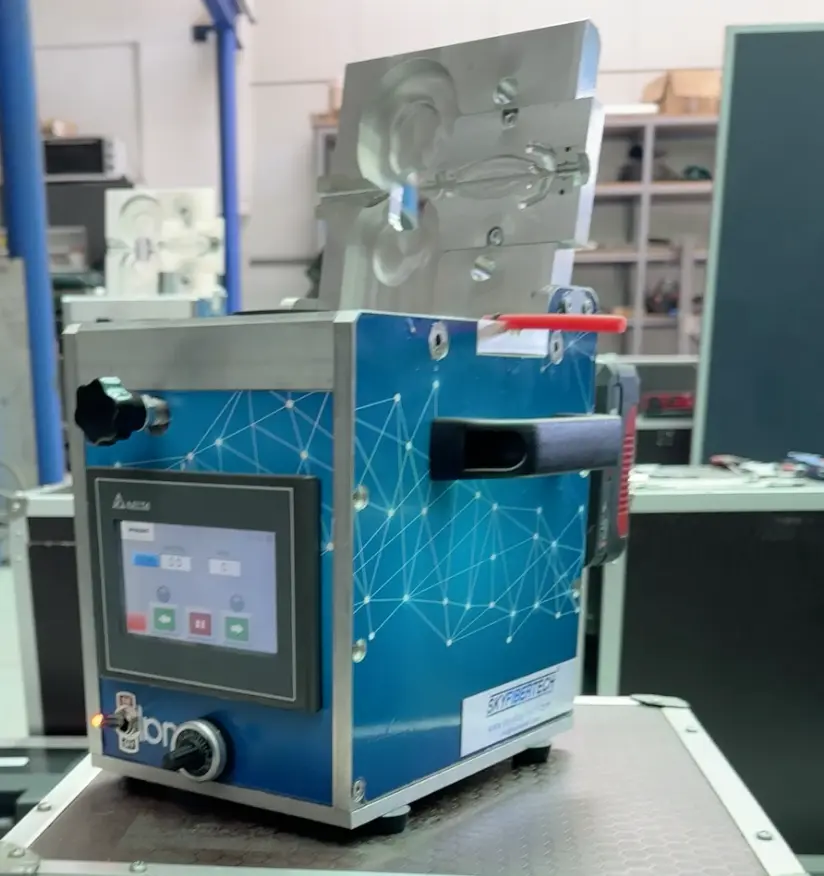

DynoSky Cable Jetting Machine

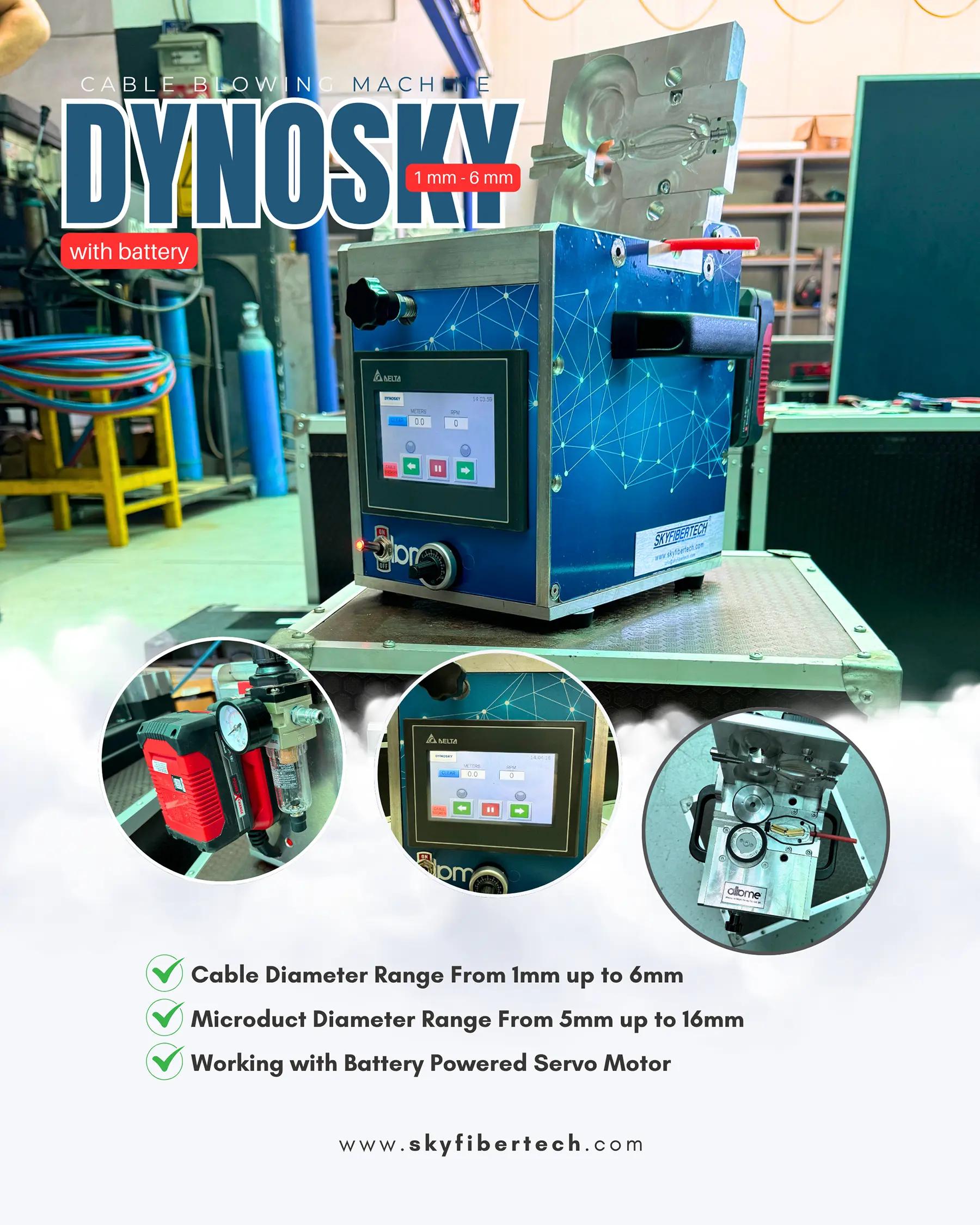

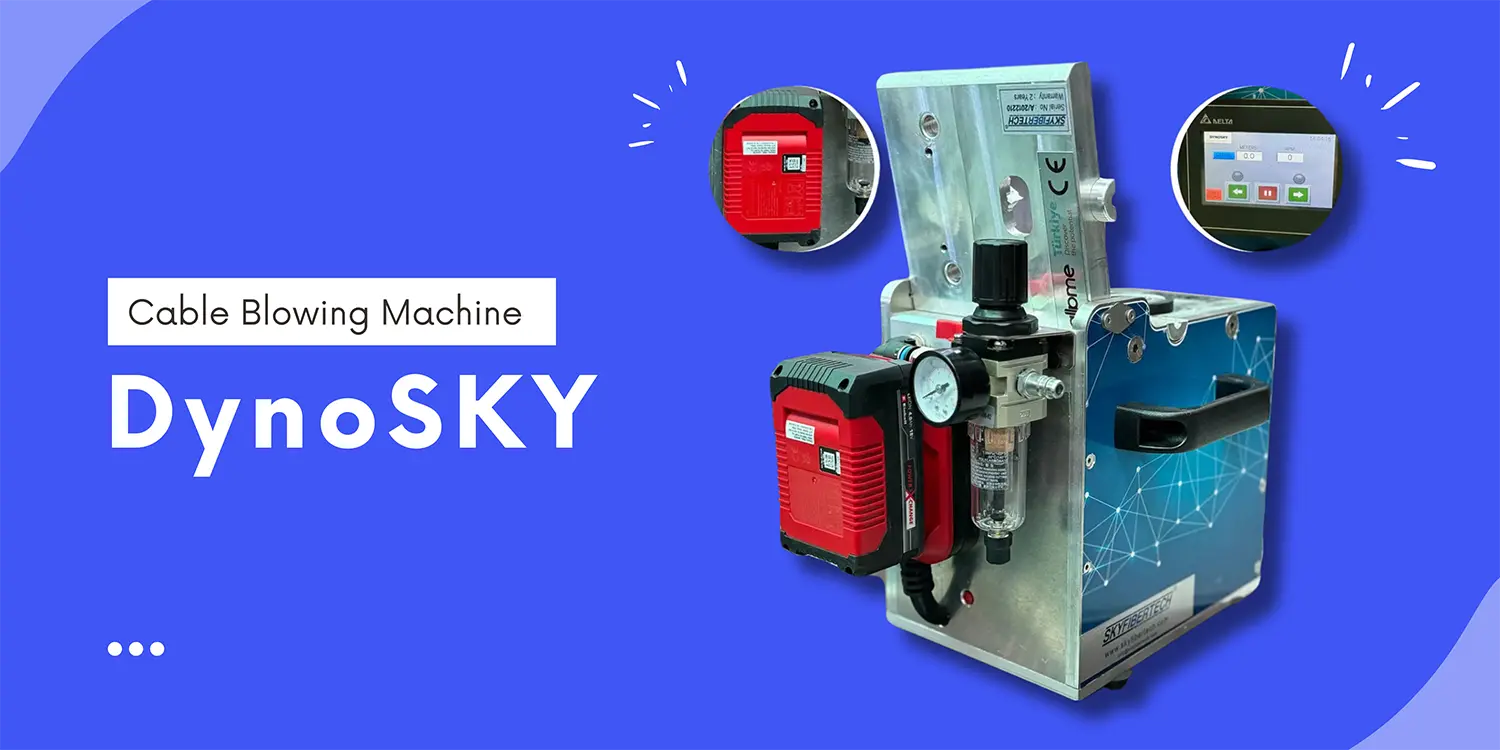

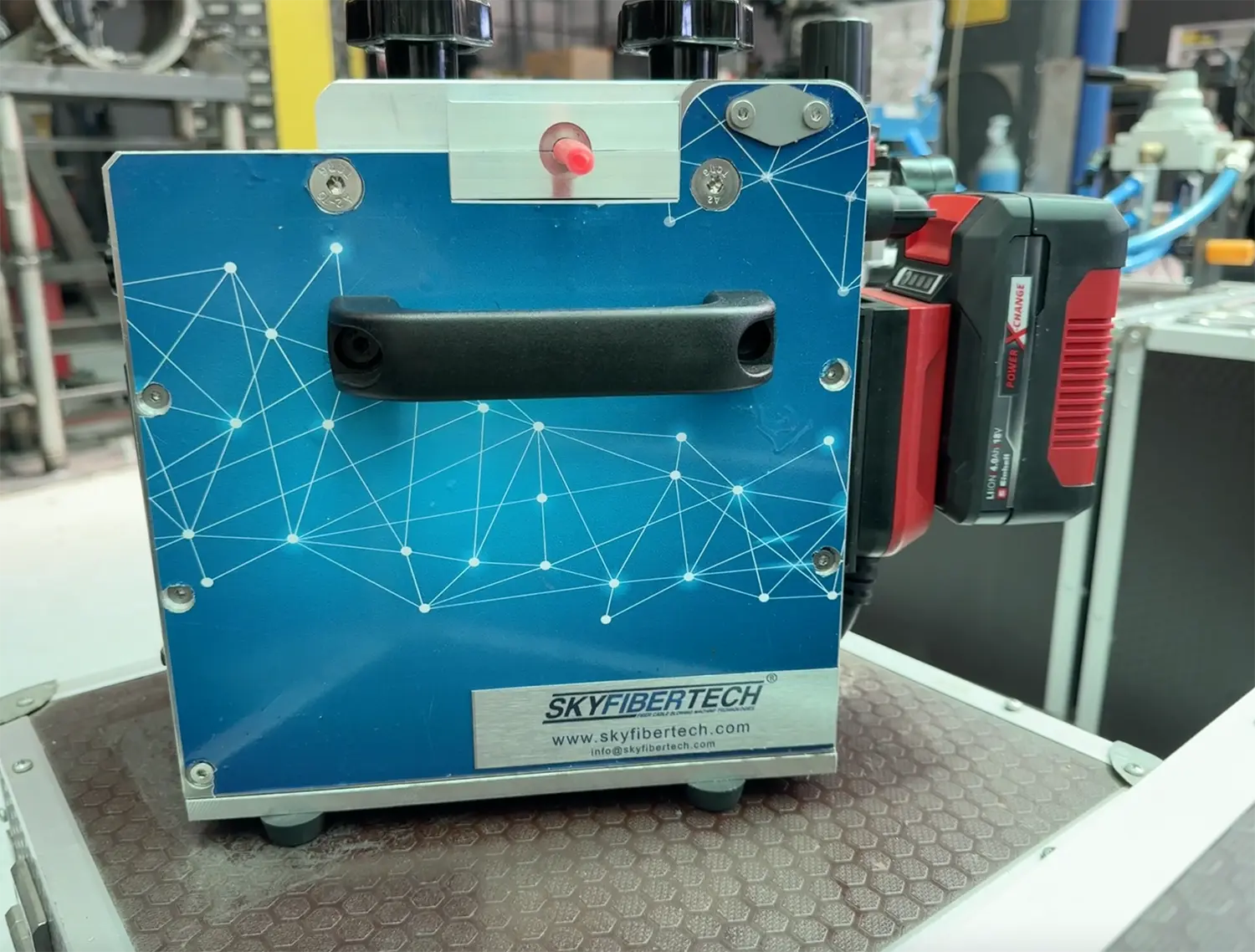

Fiber Optic Cable Jetting Machine DynoSKY is a compact, battery-powered fiber optic cable blowing machine engineered to handle 1mm to 6mm fiber cables with ease. Built with a high-torque servo motor powered by an internal battery, it gives you unmatched mobility on-site—no need for external electricity or power generators.
Whether you’re working on indoor installations or outdoor FTTH networks, DynoSKY offers a perfect balance between portability and performance.
DynoSKY requires no external power thanks to its closed loop battery system. The built in servo motor provides controlled pushing force to push the cables into HDPE conduits and is ideal for sites where access to electricity is difficult to come by or where electricity is not recommended.
Air blowing assisted energy efficient
In order to provide the smoothness for the cable to go in, DynoSKY employs compressed-air gases at 12 bar pressure, and consumes a flow rate of about 1–2 m³/min. This air pressure, in conjunction with the machine’s motorized feed system, allows for quick installs, which means faster production for you.
Smart Cable Safety System
It is built in with cable protection system to monitor the cable tension and resistance at all times. If excessive tension is placed on the fiber optic cable this machine will automatically stop ensuring your fiber optic is not damaged.
This is custom heading element
Changing the duct size is very easy to accomplish. DynoSKY works with 7mm / 10mm / 12mm / 14mm / 16mm HDPE ducts it includes all adapters and seals required. Its tool free mounting system makes it easy to start your work within minutes.
Complete Control and Digital Monitoring
Fiber Optic Cable Jetting Machine DynoSKY benefits from a digital resettable counter which measures the distance of cable inserted into the duct. Having these data in real-time allows the technicians to maintain accurate control of the installation. And forward-reverse control means it’s easy to fix handling mistakes on the fly.
Key Specifications of DynoSKY
• Cable diameters: 1mm to 6mm
• Supporting duct size: 7mm, 10mm, 12mm, 14mm, 16mm
• With built-in servo motor and battery support
• Doesn’t need external electricity
• Counter (its a resettable digital meter for cable length)
• Forward/reverse feed with manual forward feed and optional anti‐reverse provisions
• Engineered cable stability system
• Comes with full adaptor & seal kit
• Waterproof case designed for transport on UTV or EXTV applications
• 2-year full warranty
• 10 years of spare parts availability guaranteed
What Comes Inside DynoSKY?
• All sizes supported by duct adapters
• Cable seals for the respective cable diameters
• Digital length counter pre-installed
• Drive wheels – high-efficiency (for thin and thick cables)
• Battery and charger unit
• Set of Allen keys and screws
• Protective and storage case
