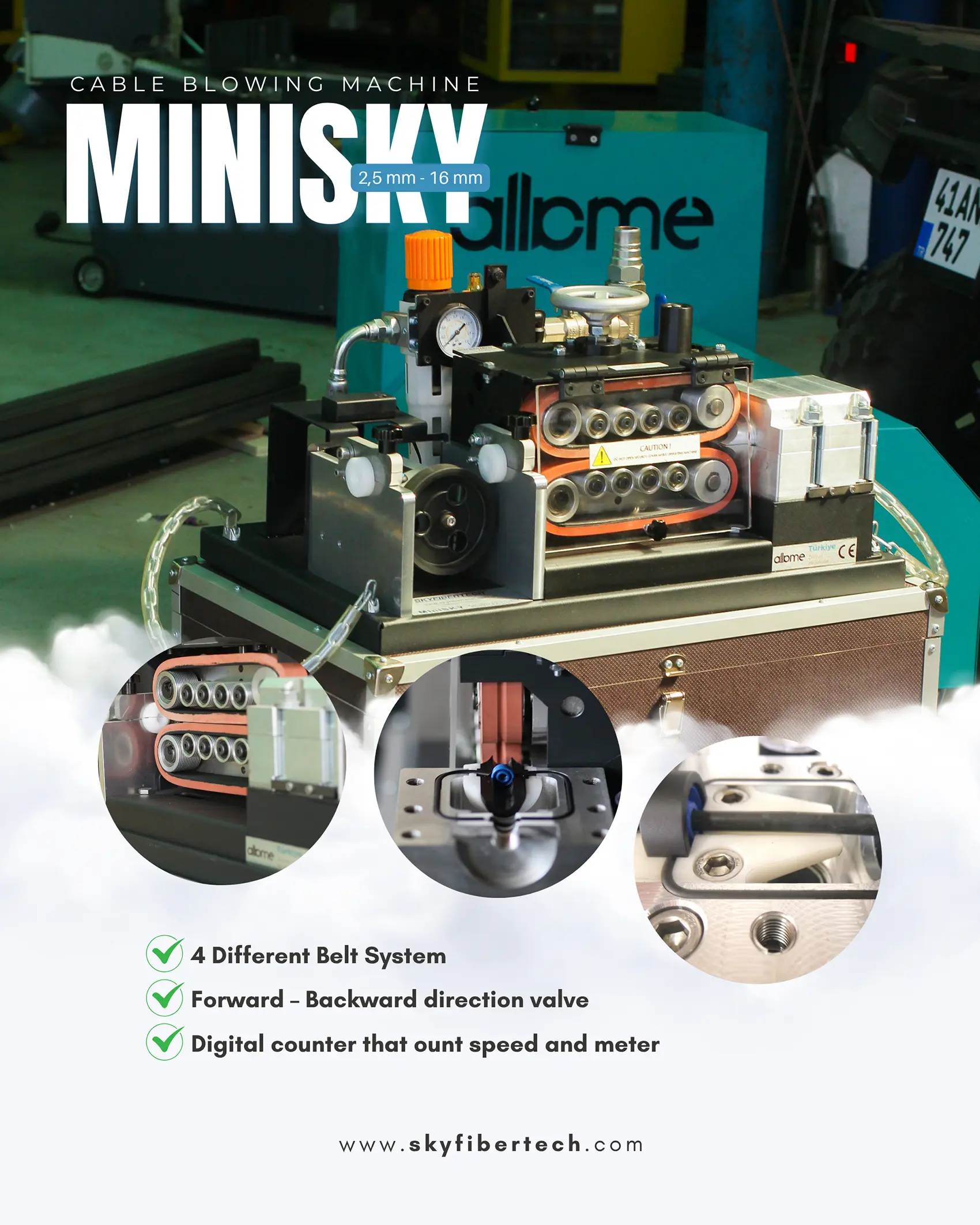

MiniSKY Plus Cable Jetting Machine
The MiniSKY is an air blowing machine for optic cables, ideal for economical insertion of fiber cables into thin wall HDPE ducts. Compact size, simple and reliable structure as well as high fiber compatibility, HSV is Most popular product for FTTH,FTTX,etc infrastructure. It is appropriate for fiber cable diameter from 2.5mm to 16 mm.

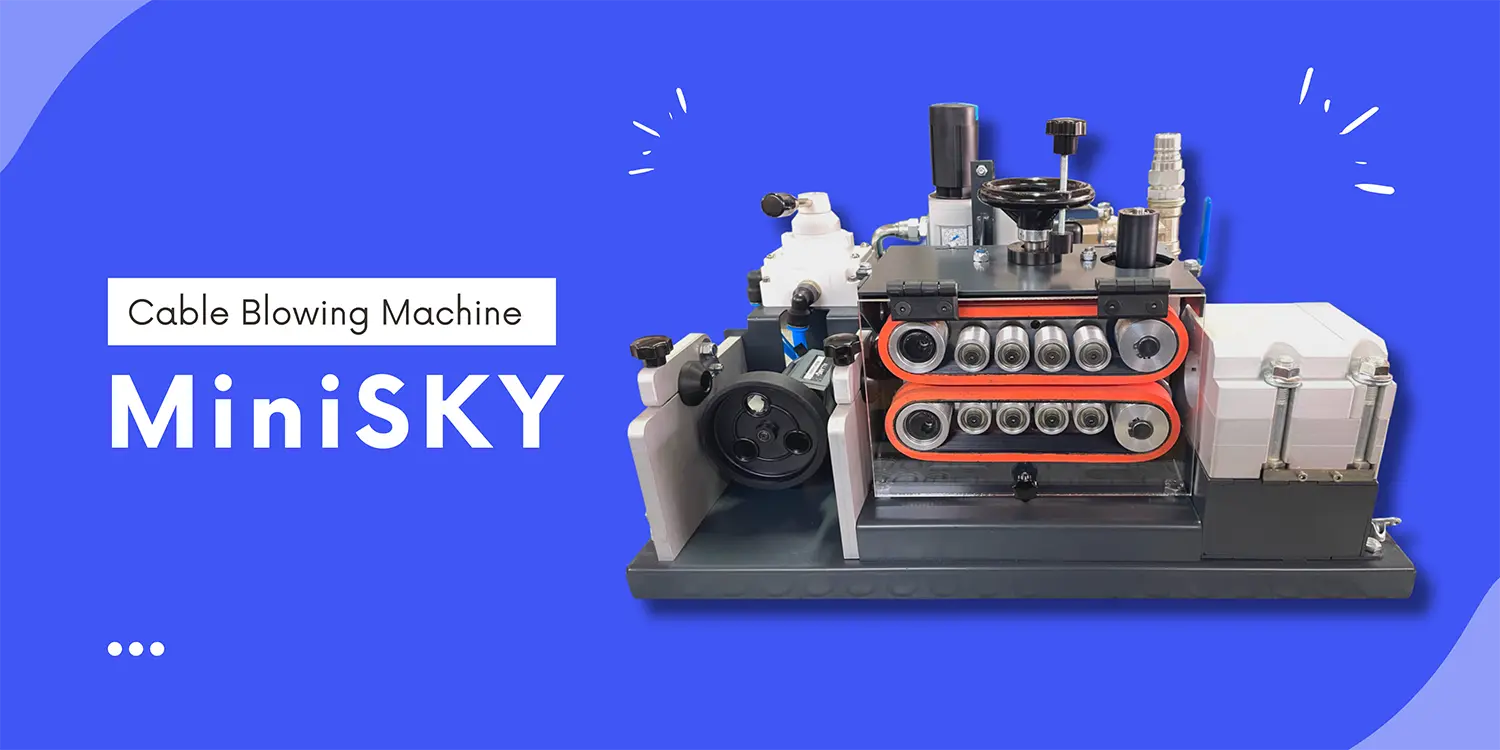

Fiber Optic Cable Jetting Machine MiniSKY is powered by a single air motor and therefore does not require electric power. High-pressure air is supplied from an outside compressor to the motor and the duct simultaneously. This two way action enables to activate the belt system and gently move the cable through the line and also, that same action positively crushes stoppage.
Minimum requirement for air supply:
pressure 12 bar and airflow 1 m³/min.
(This will vary by Cable and Conduit size.)
To be used with air compressors. The machine provided wit all necessary fittings and adapters.
Universal Belt Packs For Varied Size Cables
Fiber Optic Cable Jetting Machine MiniSKY is delivered with four different belt sets which allows you to use ropes or cables of different diameters and provides maximum grip while it rotates easily and without damaging the cable.
Supported cable diameters:
2.5, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 and 16mm
Belt groups available:
• 2.5mm – 4mm
• 5mm – 8mm
• 9mm – 12mm
• 13mm – 16mm
Matching cable channels and sealing rings are supplied with each belt set.
HDPE Duct Compatibility
MiniSKY works with most common HDPE duct sizes. Should your application require a non-standard size, we can supply specials on request.
Supported standard duct sizes:
8mm, 12mm, 14mm, 16mm,20mm,25mm,32mm,40mm,50mm
(Custom diameters available on request. Please contact us before your order.
Technicial Specifications
| Pushing Force: | 0 – 300 N |
| Pushing Speed: | 0 – 150 m/min |
| Cable Size : | 2,5 – 16 mm |
| Duct Size : | 8 – 63 mm |
| Drive Motor : | Air |
| Air consumption per recommended minimum pipe diameter (at 12Bar): | |
| 0 – 8mm : | 1m³/min 40-50 CFM |
| From 8 to 12mm: | 2m³/min 100-120 CFM |
| From 12mm to 16mm : | 3m³/min 150 CFM |
| From 16mm to 20mm : | 4m³/min 200 CFM |
| From 20mm to 32mm : | 5-6m³/min 300 CFM |
MiniSKY Cable Blowing Machine with 2 Motors Difference
Key Features of MiniSKY
• Forward/back blowing mode
• Digital Counter (for cable speed and distance)
• Quick-change belt mechanism
• Specific belts for every cable diameter
• Secure compressor coupling
• Half-automatique system of the pressure of the belt
• Precision gear drive system
• Pipe pressure manometer
• Fast-connect fittings
• Protective cover for safely.
• One size fits all approved size pipe connection system (also available as an option)
• Marine-grade portable carrying case with waterproof feature
• Perfect for Airports, Oil & Gas Lines, Telecom Providers, UG Fiber Networks, Data Centers, and Field Deployments
• 2-year manufacturer guarantee
• 10-year parts availability
• Remote support over the internet or the phone
Video for MiniSKY
MiniSKY Technical Specifications
