MiniSky Plus Cable Jetting Machine with Protokoll for Germany!
Built for precision. Designed for performance. Certified for reliability.

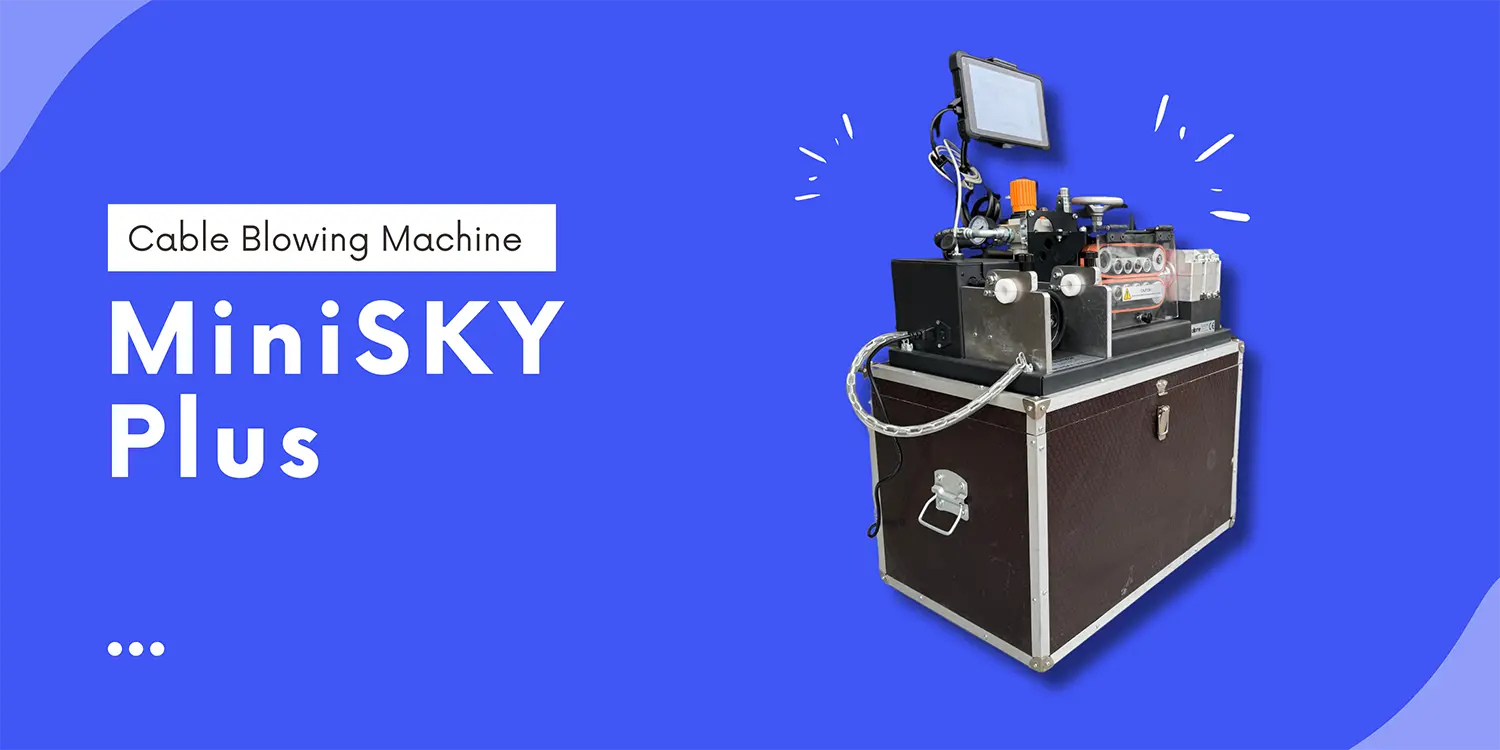

The MiniSky Plus is a high-performance fiber blowing machine engineered to install fiber optic cables into HDPE and microduct pipes with exceptional speed, control, and accuracy. With a wide cable diameter range from 2.5 mm to 16 mm, it’s the ideal solution for mid-size and large-scale infrastructure projects.

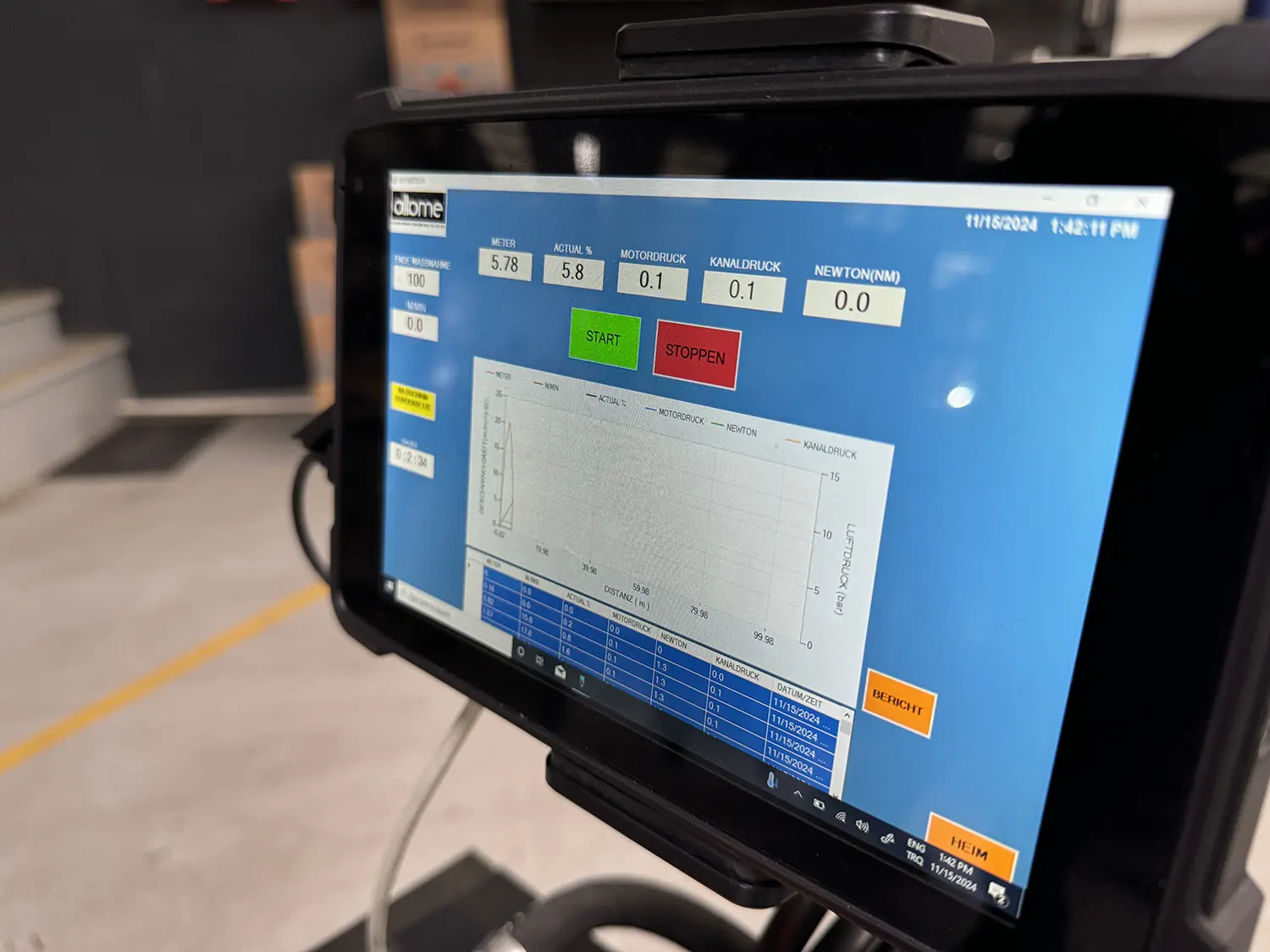

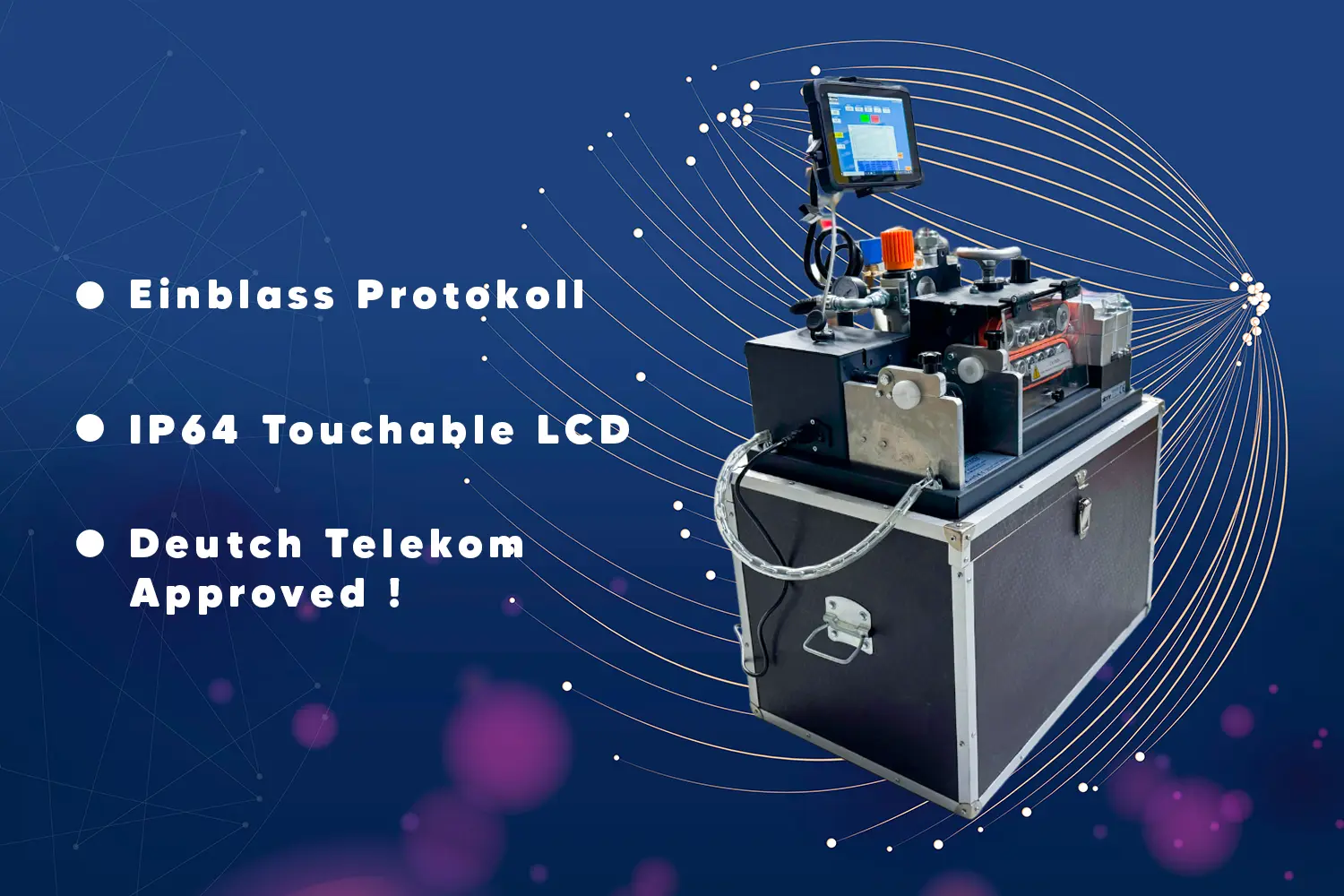

Equipped with a software-based protocol system, the MiniSky Plus ensures complete job traceability and reporting — a feature particularly valuable for clients and regulations in Germany and across the EU.
Built for Efficiency
MiniSky Plus runs on compressed air, operating through a single air motor system. Compressed air flows into the motor and duct line, propelling the belt-driven mechanism that smoothly pushes fiber optic cables through the conduit.
• Air Requirement: Minimum 12 bar / 1 m³ per minute
(Exact air needs may vary based on cable and duct size.)
• Compatible with all major air compressors
• All required seals and connectors are included with the machine
Four Configurable Belt Systems for Different Cable Sizes
Adaptability is at the core of the MiniSky Plus design. The system includes four modular belt sets, each tailored to different cable thicknesses:
• Cable diameter compatibility: 2.5 mm to 16 mm
Belt groups:
• 2.5–4 mm
• 5–8 mm
• 9–12 mm
• 13–16 mm
Optional HDPE Pipe Size Kits
The machine supports a wide range of pipe diameters:
• Standard pipe sizes: 8 mm, 12 mm, 14 mm, 16 mm, 20 mm, 25 mm, 32 mm
• Custom pipe setups available: For other diameters, contact our team
Every duct adapter and connector is designed to ensure an airtight seal and secure performance — even in demanding outdoor conditions.
Technicial Specifications
| Pushing Force: | 0 – 300 N |
| Pushing Speed: | 0 – 150 m/min |
| Cable Size : | 2,5 – 16 mm |
| Duct Size : | 8 – 63 mm |
| Drive Motor : | Air |
| Air consumption per recommended minimum pipe diameter (at 12Bar): | |
| 0 – 8mm : | 1m³/min 40-50 CFM |
| From 8 to 12mm: | 2m³/min 100-120 CFM |
| From 12mm to 16mm : | 3m³/min 150 CFM |
| From 16mm to 20mm : | 4m³/min 200 CFM |
| From 20mm to 32mm : | 5-6m³/min 300 CFM |
Key Features at a Glance
• ✅ Integrated Report Software (Protocol-Ready)
• ✅ Weather-resistant mechanical meter counter
• ✅ Touchscreen user interface
• ✅ Reversible propulsion (Forward / Reverse)
• ✅ Fast-change belt system for different cable sizes
• ✅ Pressure manometer for pipe monitoring
• ✅ Quick-coupling for air compressor
• ✅ Adjustable safety cover
• ✅ Semi-automatic belt tensioner
• ✅ Interchangeable pipe modules
• ✅ Marine-grade waterproof storage box
Whether you’re deploying in an airport, telecom trench, oil pipeline corridor, or smart city infrastructure — MiniSky Plus is ready.
What’s Included in the Standard Package?
• ✔️ 5 pcs Cable Pads for each cable diameter
• ✔️ Duct Adapter Sets (based on your selected pipe diameters)
• ✔️ O-Rings
• ✔️ Belt & Pad Set for 5–8 mm (standard)
• ✔️ Belt & Pad Sets for other sizes available optionally
• ✔️ Allen key set
• ✔️ Compressor coupling hose
• ✔️ Durable accessories box for easy transport & storage
Optional belt kits for 2.5–4 mm, 9–12 mm, and 13–16 mm cable sizes are available upon request.
Full Operation Guide
